Master Technician DIY Database

OEM Specifications • Torque Values • TSB Diagnostics

Select Vehicle

1/4

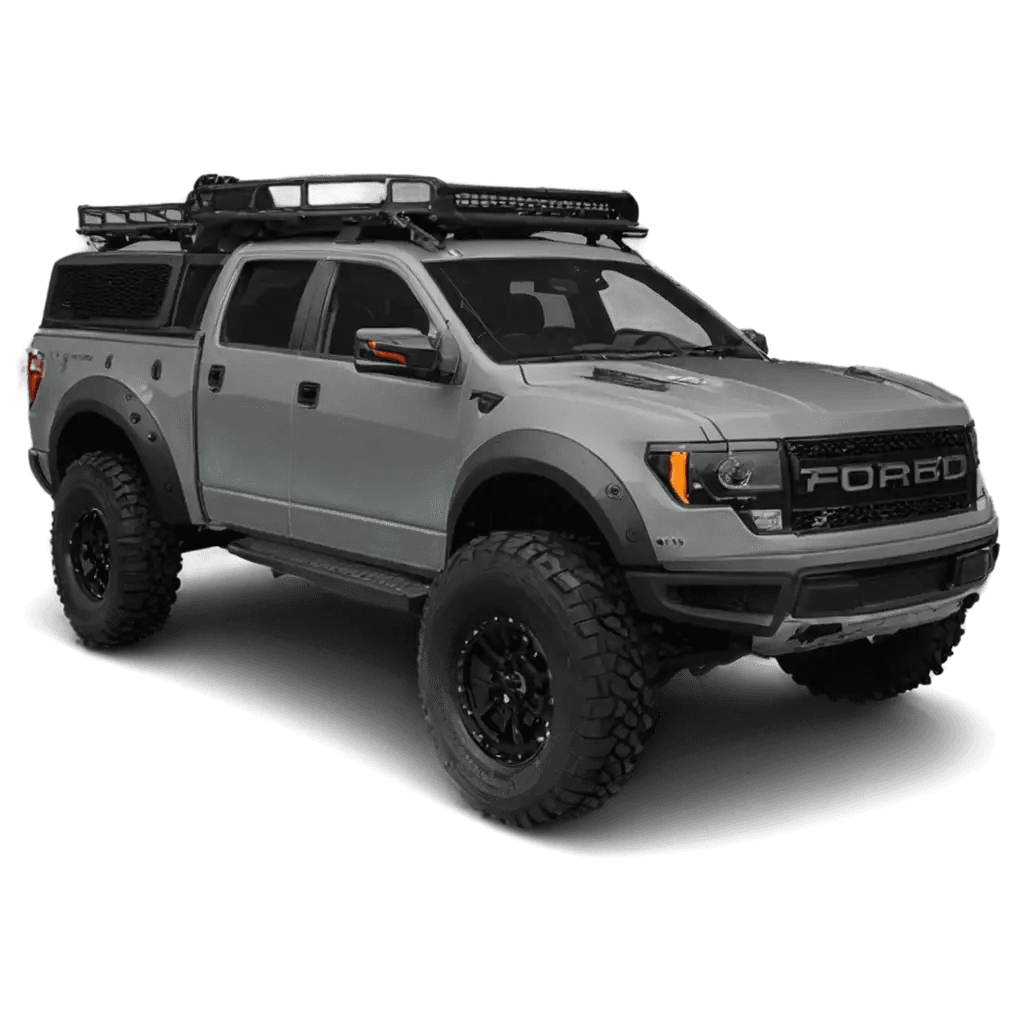

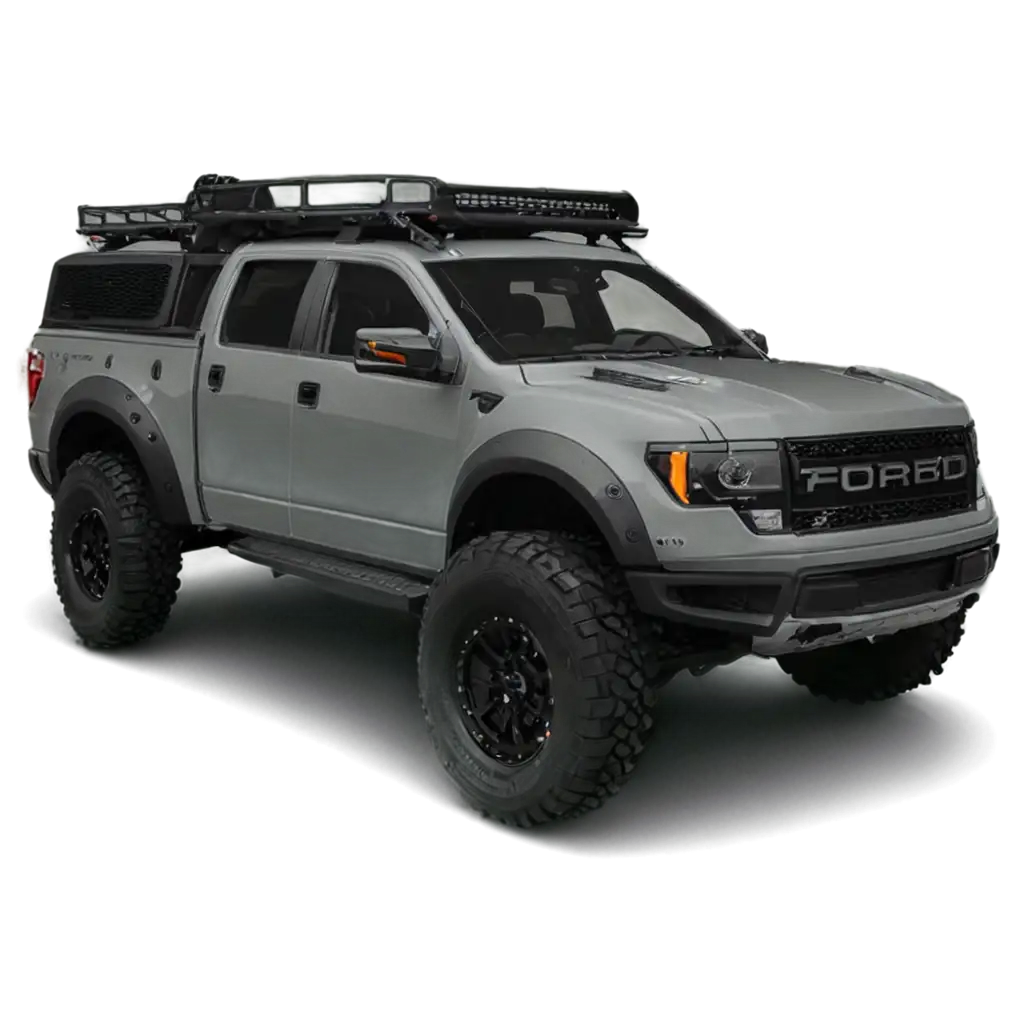

Ford F-150 Raptor

Gen 2 (2017-2020) • 3.5L High-Output EcoBoost V6

Engine Lubrication & Filtration

5,000 Miles (Severe Duty)

Component	Spec / Part	Tool	Torque

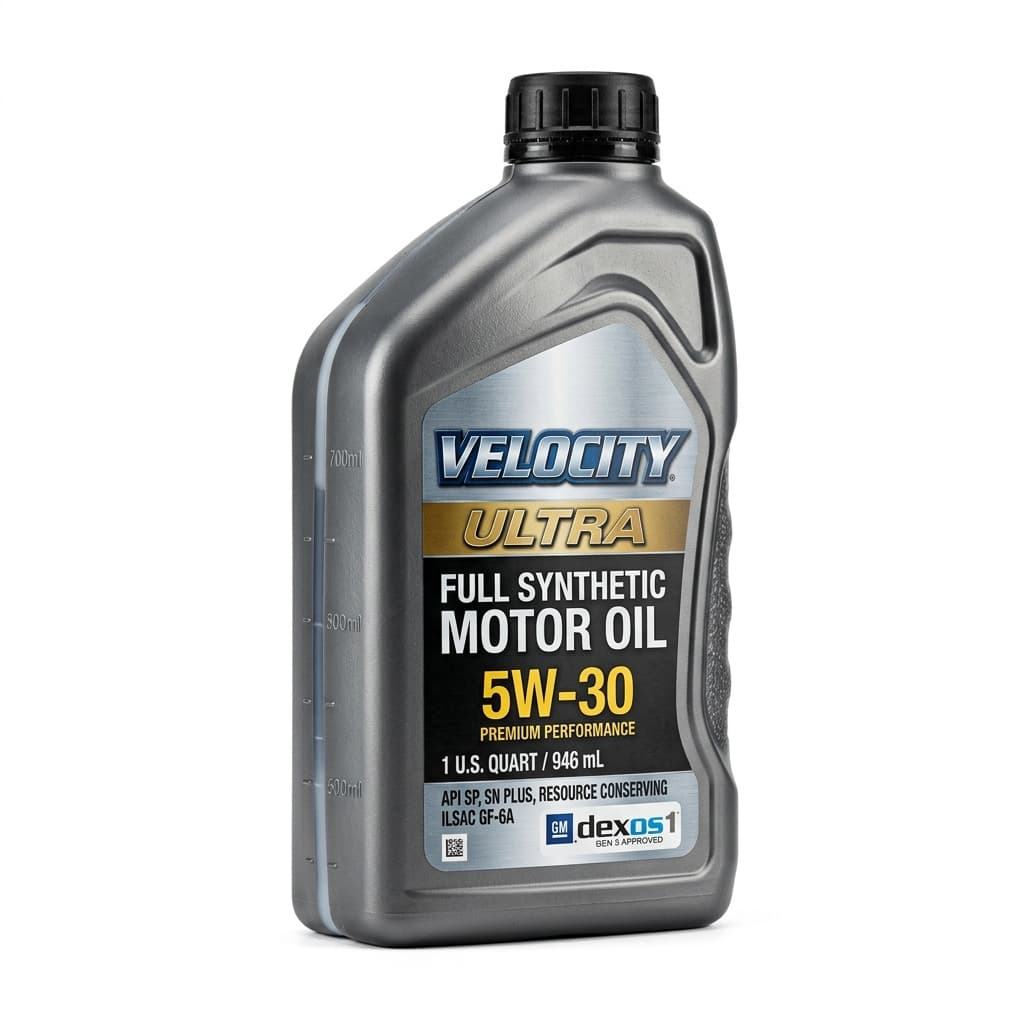

Oil Capacity	6.0 Qts (5W-30 Full Synthetic)PN: XO-5W30-Q1SP	-	-

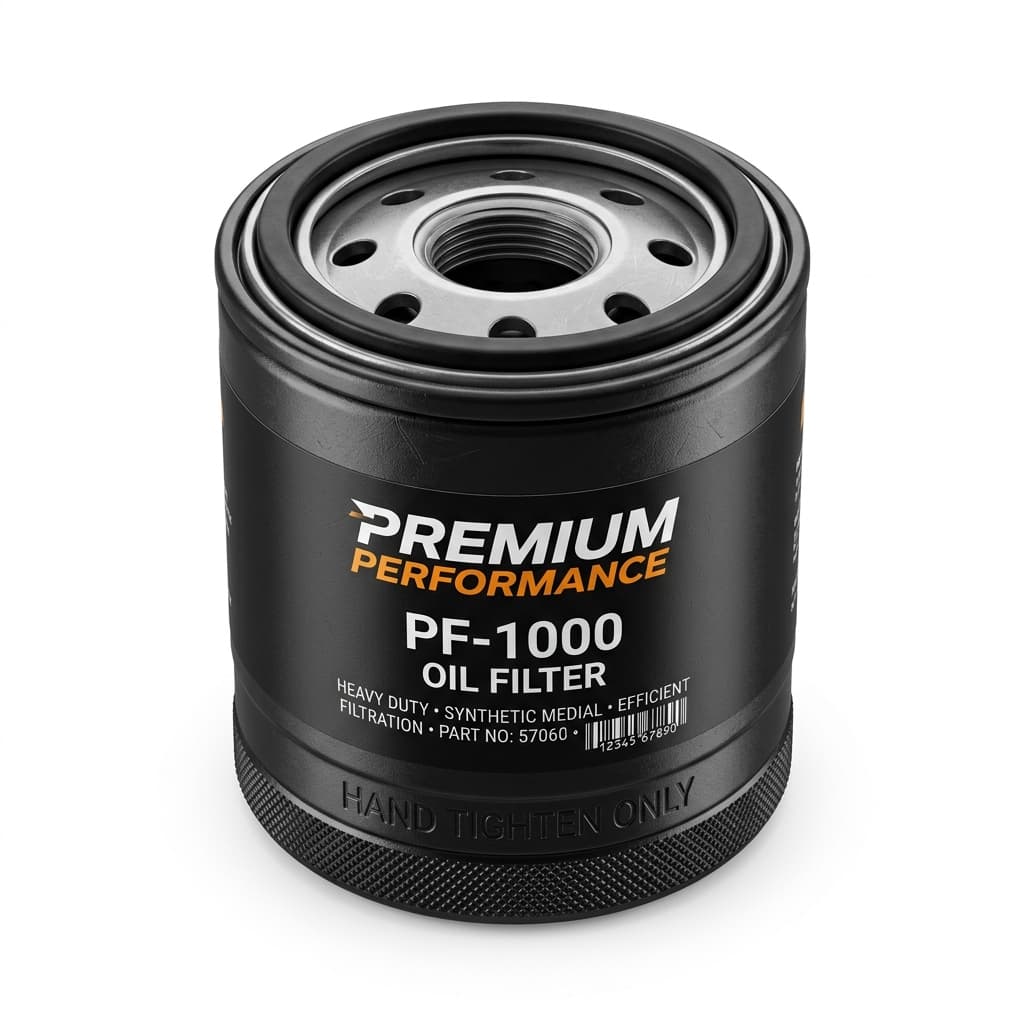

Oil Filter	Spin-OnPN: FL-500S	-	3/4 turn after contact
Drain Plug	Standard 12x1.75mm	15mm Socket	20 lb-ft (27 Nm)
Air Filter	Panel TypePN: FA-1883	8mm Socket / Flathead	-

Technical Service Bulletin: TSB 21-2093

Symptoms

Loud metallic rattle for 2-5 seconds on cold start-up.

Cause

Wear on the Variable Cam Timing (VCT) phaser locking pin due to oil starvation or extended intervals.

Official Fix

Update PCM calibration. If noise persists, replace all 4 VCT phasers (Part: ML3Z-6C525-A) and timing chains.

Master Tech Advice

Always pre-fill the oil filter with fresh oil before threading it on. This instantly builds oil pressure on the first start, drastically reducing wear on the fragile cam phasers.

Buy Required Parts

Heavy Duty Braking System

Check every 10k miles

Component	Spec / Part	Tool	Torque

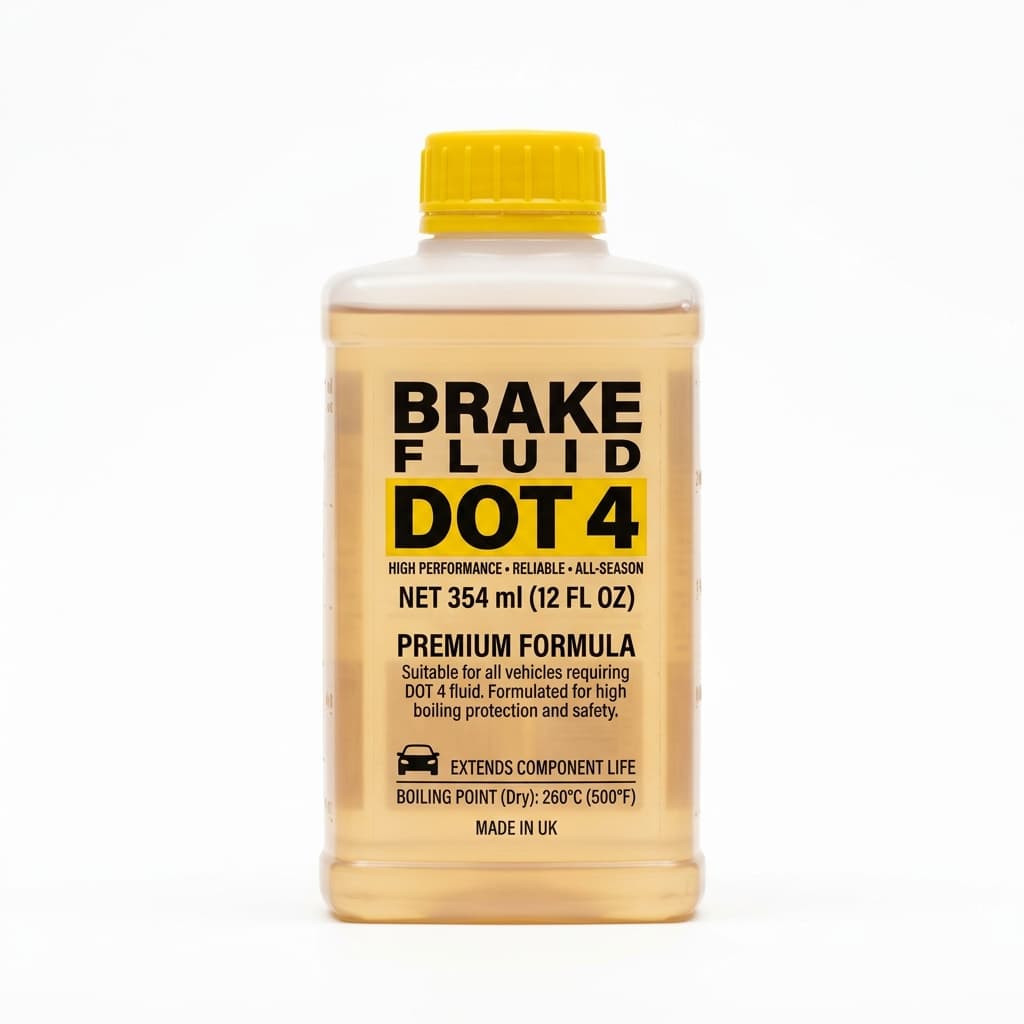

Brake Fluid	DOT 4 LV High PerformancePN: PM-20	-	-

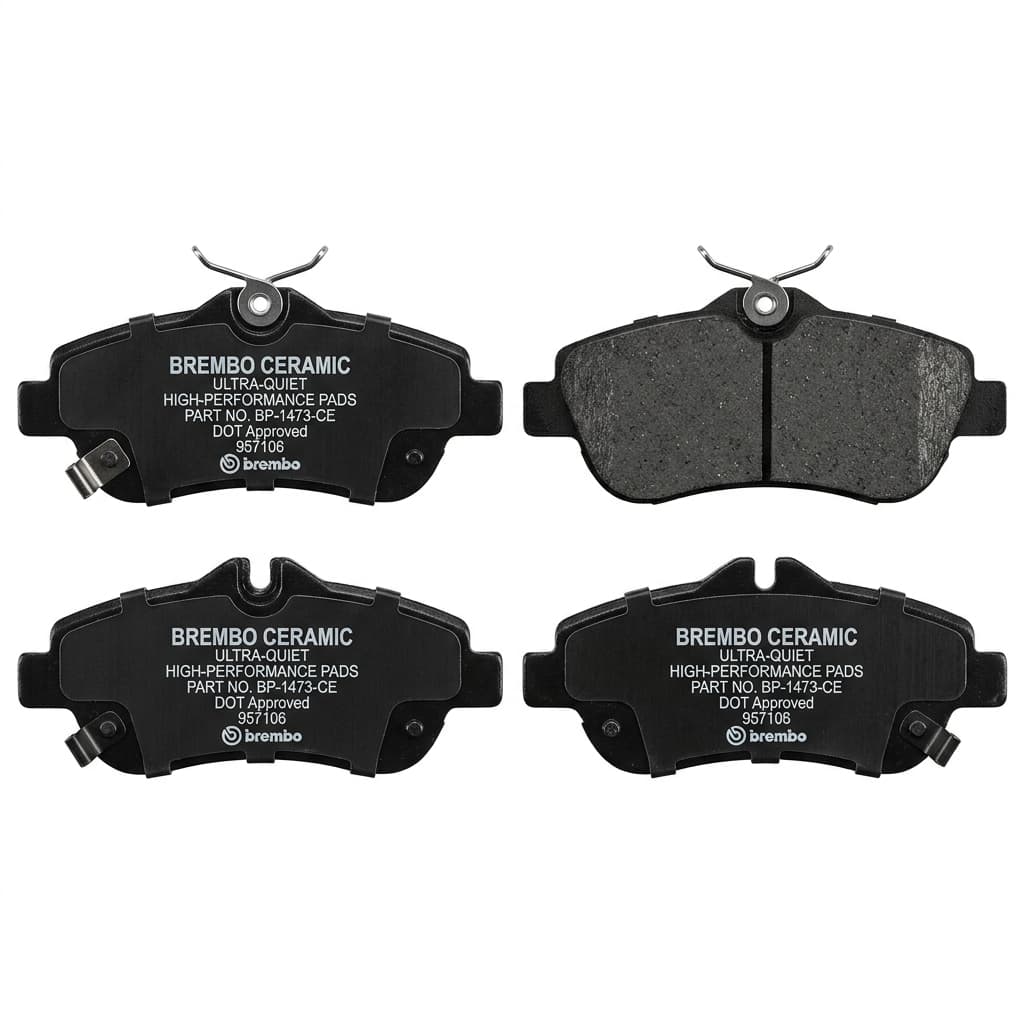

Front Pads	Ceramic HD CompoundPN: KL3Z-2001-A	-	-
Front Rotors	350mm VentedPN: HL3Z-1125-A	-	Min Thickness: 32.0mm
Caliper Bolts	Slide Pin Bolts	13mm Socket	27 lb-ft (37 Nm)
Bracket Bolts	Mounting Bracket	21mm Socket	136 lb-ft (184 Nm)

Technical Service Bulletin: SSM 47913

Symptoms

Spongy brake pedal feel after aggressive off-roading.

Cause

Fluid boil due to extreme temperatures overworking the factory DOT 3 fluid.

Official Fix

Flush entire system using specialized pressure bleeder and upgrade to DOT 4 LV.

Master Tech Advice

Never push the caliper pistons back without opening the bleeder valve first. Forcing dirty fluid backwards will severely damage the ABS hydraulic control unit.

Buy Required Parts

Ignition & Electrical

40,000 Miles (Plugs)

Component	Spec / Part	Tool	Torque
Battery	Group 94R (H7) AGMPN: BAGM-94RH7-800	-	800 CCA

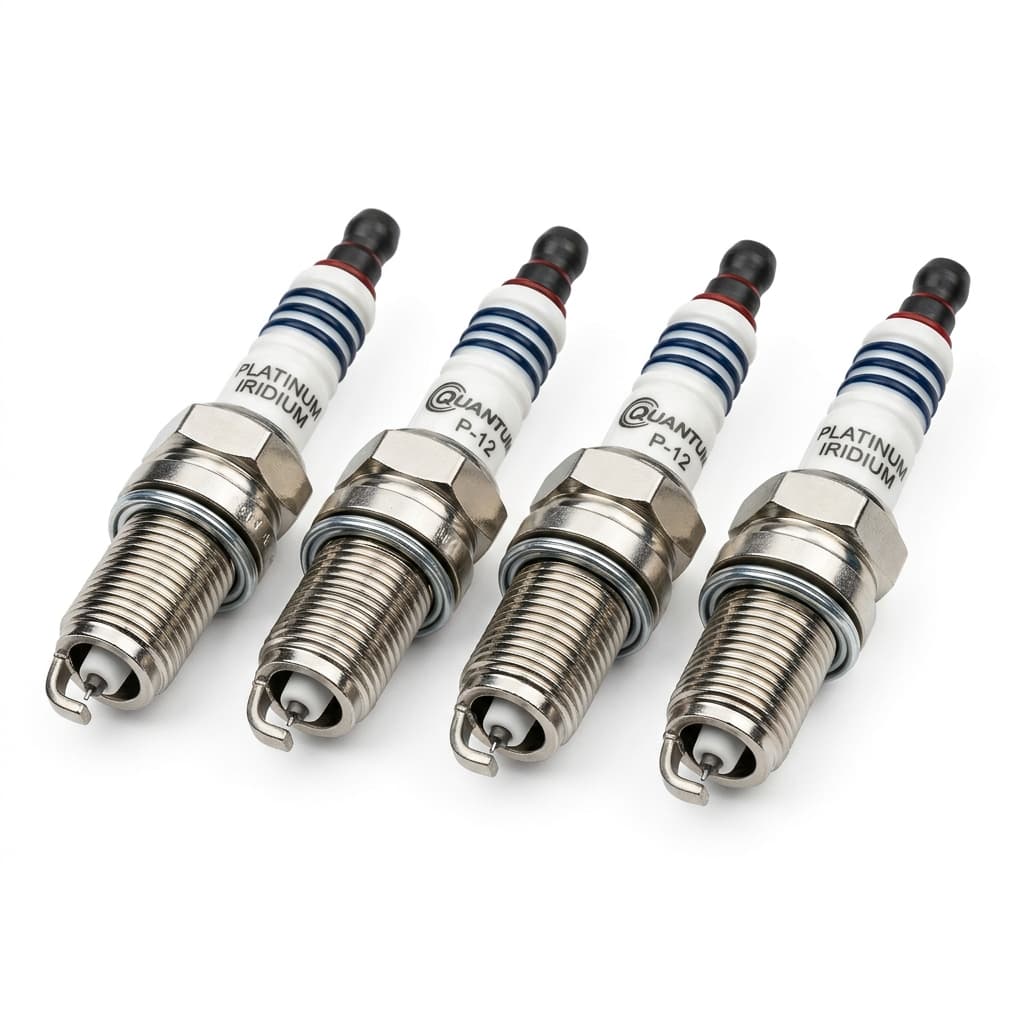

Spark Plugs	Motorcraft IridiumPN: SP-542	5/8" Magnetic Socket	11 lb-ft (15 Nm)
Plug Gap	0.028 - 0.031 in	Feeler Gauge	-

Technical Service Bulletin: TSB 19-2345

Symptoms

Misfires under heavy boost (DTC P0300-P0306).

Cause

Carbon tracking on spark plug porcelain or cracked insulator.

Official Fix

Replace spark plugs and ignition coil boots. Apply dielectric grease strictly to the inside tip of the boot.

Master Tech Advice

When replacing the AGM battery, you MUST reset the Battery Management System (BMS) using a bi-directional scanner, otherwise the alternator will overcharge and boil the new battery in months.

Buy Required Parts
